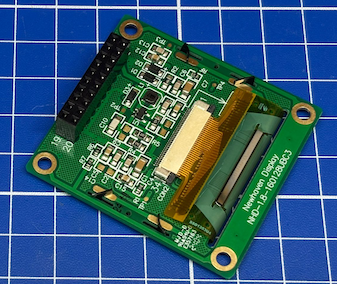

OLED Display Module 1.8"

Hace tiempo me decanté por este módulo OLED 1.8" súper fácil de programar, es él NHD-1.8-160128UBC3 de Newhaven Display, en otro post explico como funciona el controlador SSD1353 que incorpora. Descubrí este tipo de display por este proyecto; Sir Box-a-Lot: an 8-bit Sokoban clone hecho por lcamtuf el cual me sorprendió su trabajo.

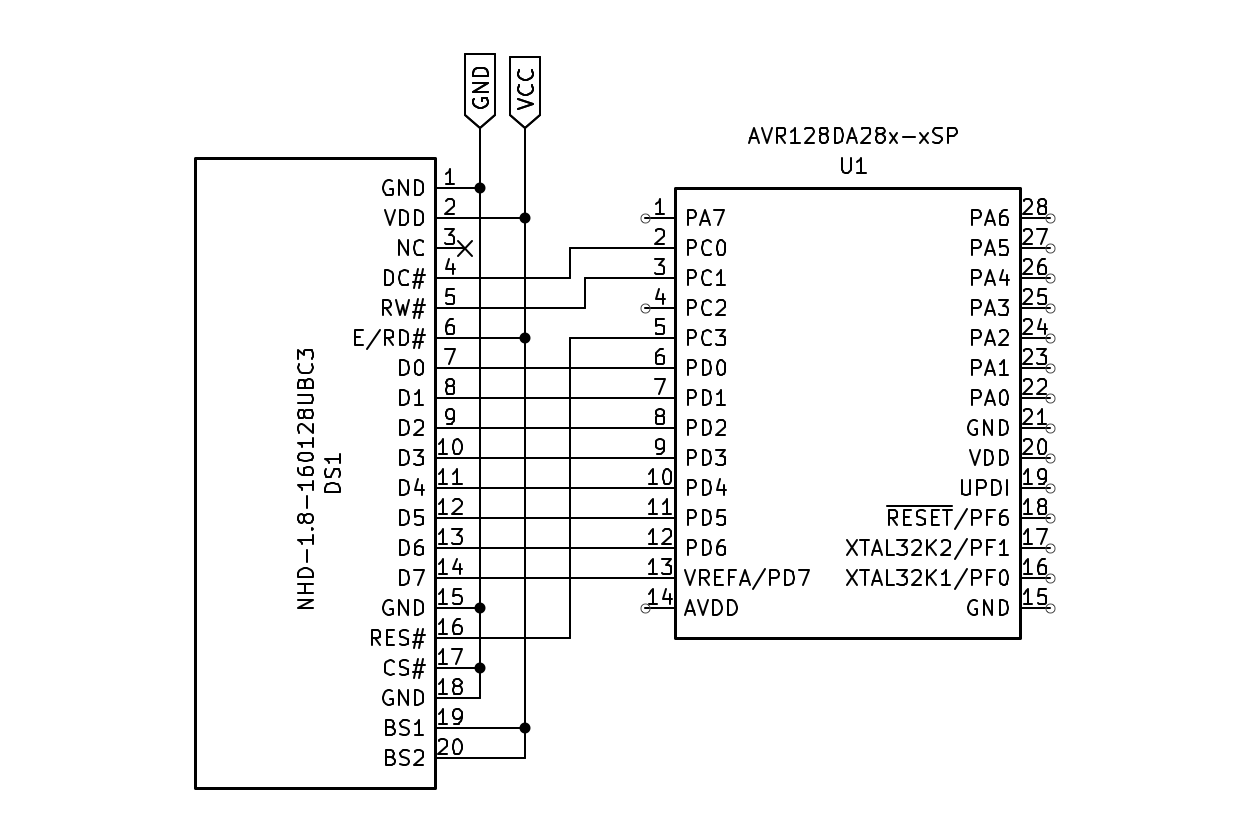

A continuación muestro un diagrama esquemático usando el display con un AVR128DA28, las conexiones establecidas al módulo lo configuran para trabajar en 8-bit 8080 Parallel Interface como los clásicos LCD 16x2.

Note

Las conexiones para que funcione el MCU son ignoradas a propósito con la intención de simplificar el diagrama para centrarnos en el funcionamiento del módulo.

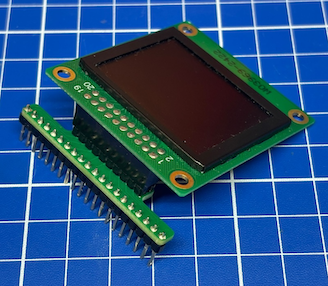

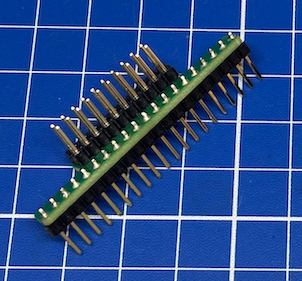

Para poder montar de forma más cómoda y limpia el módulo al breadboard, mandé hacer una PCB muy simple que hace de adaptador de 2x10 a 1x20 pines. Aquí tienes el diseño en KiCAD para descargar.

Programarlo en el AVR128DA28 es muy fácil, te dejo el código fuente:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280

#include <avr/io.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <util/delay.h>

#define DISPLAY_CTRL            PORTC
#define DISPLAY_DATA            VPORTD
#define DISPLAY_CTRL_DC         0x00 // PIN4 PC0
#define DISPLAY_CTRL_WR         0x01 // PIN6 PC1
#define DISPLAY_CTRL_RST        0x02 // PIN5 PC2

#define DISPLAY_CONTRAST        0x87
#define DISPLAY_DIM_MODE        0xAB
#define DISPLAY_HEIGHT          0x80 // 128 pixels
#define DISPLAY_MULTIPLEX_RATIO 0xA8
#define DISPLAY_NORMAL_MODE     0xA4
#define DISPLAY_OFF             0xAE
#define DISPLAY_OFFSET          0xA2
#define DISPLAY_ON              0xAF
#define DISPLAY_RESET           0xE2
#define DISPLAY_SET_COLUMN      0x15
#define DISPLAY_SET_ROW         0x75
#define DISPLAY_START_LINE      0xA1
#define DISPLAY_WIDTH           0xA0 // 160 pixels
#define DISPLAY_WRITE           0x5C

#define COLOR_RD       0xF800 // Red
#define COLOR_OR       0xFD20 // Orange
#define COLOR_GN       0x07E0 // Green
#define COLOR_GN_DARK  0x0200 // Green
#define COLOR_BL       0x001F // Blue
#define COLOR_YL       0xFFE0 // Yellow
#define COLOR_WH       0xFFFF // White
#define COLOR_BK       0x0000 // Black
#define COLOR_GY_DARK  0x7BEF // Grey
#define COLOR_GY_LIGHT 0xC618 // Grey
#define COLOR_PP       0x780F // Purple
#define COLOR_BR       0xA145 // Brown

const uint8_t FONT_LINE_HEIGHT = 10;

const uint8_t FONT[][5] PROGMEM = {
  {0x00,0x00,0x00,0x00,0x00}, // 0x20 ' '
  {0x00,0x00,0x5F,0x00,0x00}, // 0x21 '!'
  {0x00,0x07,0x00,0x07,0x00}, // 0x22 '"'
  {0x14,0x7F,0x14,0x7F,0x14}, // 0x23 '#'
  {0x24,0x2A,0x7F,0x2A,0x12}, // 0x24 '$'
  {0x23,0x13,0x08,0x64,0x62}, // 0x25 '%'
  {0x36,0x49,0x55,0x22,0x50}, // 0x26 '&'
  {0x00,0x05,0x03,0x00,0x00}, // 0x27 '''
  {0x00,0x1C,0x22,0x41,0x00}, // 0x28 '('
  {0x00,0x41,0x22,0x1C,0x00}, // 0x29 ')'
  {0x14,0x08,0x3E,0x08,0x14}, // 0x2A '*'
  {0x08,0x08,0x3E,0x08,0x08}, // 0x2B '+'
  {0x00,0x50,0x30,0x00,0x00}, // 0x2C ','
  {0x08,0x08,0x08,0x08,0x08}, // 0x2D '-'
  {0x00,0x60,0x60,0x00,0x00}, // 0x2E '.'
  {0x20,0x10,0x08,0x04,0x02}, // 0x2F '/'
  {0x3E,0x51,0x49,0x45,0x3E}, // 0x30 '0'
  {0x00,0x42,0x7F,0x40,0x00}, // 0x31 '1'
  {0x42,0x61,0x51,0x49,0x46}, // 0x32 '2'
  {0x21,0x41,0x45,0x4B,0x31}, // 0x33 '3'
  {0x18,0x14,0x12,0x7F,0x10}, // 0x34 '4'
  {0x27,0x45,0x45,0x45,0x39}, // 0x35 '5'
  {0x3C,0x4A,0x49,0x49,0x30}, // 0x36 '6'
  {0x01,0x71,0x09,0x05,0x03}, // 0x37 '7'
  {0x36,0x49,0x49,0x49,0x36}, // 0x38 '8'
  {0x06,0x49,0x49,0x29,0x1E}, // 0x39 '9'
  {0x00,0x36,0x36,0x00,0x00}, // 0x3A ':'
  {0x00,0x56,0x36,0x00,0x00}, // 0x3B ';'
  {0x08,0x14,0x22,0x41,0x00}, // 0x3C '<'
  {0x14,0x14,0x14,0x14,0x14}, // 0x3D '='
  {0x00,0x41,0x22,0x14,0x08}, // 0x3E '>'
  {0x02,0x01,0x51,0x09,0x06}, // 0x3F '?'
  {0x32,0x49,0x79,0x41,0x3E}, // 0x40 '@'
  {0x7E,0x11,0x11,0x11,0x7E}, // 0x41 'A'
  {0x7F,0x49,0x49,0x49,0x36}, // 0x42 'B'
  {0x3E,0x41,0x41,0x41,0x22}, // 0x43 'C'
  {0x7F,0x41,0x41,0x22,0x1C}, // 0x44 'D'
  {0x7F,0x49,0x49,0x49,0x41}, // 0x45 'E'
  {0x7F,0x09,0x09,0x09,0x01}, // 0x46 'F'
  {0x3E,0x41,0x49,0x49,0x7A}, // 0x47 'G'
  {0x7F,0x08,0x08,0x08,0x7F}, // 0x48 'H'
  {0x00,0x41,0x7F,0x41,0x00}, // 0x49 'I'
  {0x20,0x40,0x41,0x3F,0x01}, // 0x4A 'J'
  {0x7F,0x08,0x14,0x22,0x41}, // 0x4B 'K'
  {0x7F,0x40,0x40,0x40,0x40}, // 0x4C 'L'
  {0x7F,0x02,0x0C,0x02,0x7F}, // 0x4D 'M'
  {0x7F,0x04,0x08,0x10,0x7F}, // 0x4E 'N'
  {0x3E,0x41,0x41,0x41,0x3E}, // 0x4F 'O'
  {0x7F,0x09,0x09,0x09,0x06}, // 0x50 'P'
  {0x3E,0x41,0x51,0x21,0x5E}, // 0x51 'Q'
  {0x7F,0x09,0x19,0x29,0x46}, // 0x52 'R'
  {0x46,0x49,0x49,0x49,0x31}, // 0x53 'S'
  {0x01,0x01,0x7F,0x01,0x01}, // 0x54 'T'
  {0x3F,0x40,0x40,0x40,0x3F}, // 0x55 'U'
  {0x1F,0x20,0x40,0x20,0x1F}, // 0x56 'V'
  {0x7F,0x20,0x18,0x20,0x7F}, // 0x57 'W'
  {0x63,0x14,0x08,0x14,0x63}, // 0x58 'X'
  {0x03,0x04,0x78,0x04,0x03}, // 0x59 'Y'
  {0x61,0x51,0x49,0x45,0x43}, // 0x5A 'Z'
  {0x00,0x7F,0x41,0x41,0x00}, // 0x5B '['
  {0x02,0x04,0x08,0x10,0x20}, // 0x5C '\'
  {0x00,0x41,0x41,0x7F,0x00}, // 0x5D ']'
  {0x04,0x02,0x01,0x02,0x04}, // 0x5E '^'
  {0x40,0x40,0x40,0x40,0x40}, // 0x5F '_'
  {0x00,0x01,0x02,0x04,0x00}, // 0x60 '`'
  {0x20,0x54,0x54,0x54,0x78}, // 0x61 'a'
  {0x7F,0x48,0x44,0x44,0x38}, // 0x62 'b'
  {0x38,0x44,0x44,0x44,0x20}, // 0x63 'c'
  {0x38,0x44,0x44,0x48,0x7F}, // 0x64 'd'
  {0x38,0x54,0x54,0x54,0x18}, // 0x65 'e'
  {0x08,0x7E,0x09,0x01,0x02}, // 0x66 'f'
  {0x0C,0x52,0x52,0x52,0x3E}, // 0x67 'g'
  {0x7F,0x08,0x04,0x04,0x78}, // 0x68 'h'
  {0x00,0x44,0x7D,0x40,0x00}, // 0x69 'i'
  {0x20,0x40,0x44,0x3D,0x00}, // 0x6A 'j'
  {0x7F,0x10,0x28,0x44,0x00}, // 0x6B 'k'
  {0x00,0x41,0x7F,0x40,0x00}, // 0x6C 'l'
  {0x7C,0x04,0x18,0x04,0x78}, // 0x6D 'm'
  {0x7C,0x08,0x04,0x04,0x78}, // 0x6E 'n'
  {0x38,0x44,0x44,0x44,0x38}, // 0x6F 'o'
  {0x7C,0x14,0x14,0x14,0x08}, // 0x70 'p'
  {0x08,0x14,0x14,0x18,0x7C}, // 0x71 'q'
  {0x7C,0x08,0x04,0x04,0x08}, // 0x72 'r'
  {0x48,0x54,0x54,0x54,0x20}, // 0x73 's'
  {0x04,0x3F,0x44,0x40,0x20}, // 0x74 't'
  {0x3C,0x40,0x40,0x20,0x7C}, // 0x75 'u'
  {0x1C,0x20,0x40,0x20,0x1C}, // 0x76 'v'
  {0x3C,0x40,0x30,0x40,0x3C}, // 0x77 'w'
  {0x44,0x28,0x10,0x28,0x44}, // 0x78 'x'
  {0x0C,0x50,0x50,0x50,0x3C}, // 0x79 'y'
  {0x44,0x64,0x54,0x4C,0x44}, // 0x7A 'z'
  {0x00,0x08,0x36,0x41,0x00}, // 0x7B '{'
  {0x00,0x00,0x7F,0x00,0x00}, // 0x7C '|'
  {0x00,0x41,0x36,0x08,0x00}, // 0x7D '}'
  {0x08,0x08,0x2A,0x1C,0x08}, // 0x7E '~'
};

void clk_init(void) {
  CCP = CCP_IOREG_gc;                         // Disable Configuration Change Protected register.
  CLKCTRL.OSCHFCTRLA = CLKCTRL_FRQSEL_24M_gc; // Configure to 24Mhz.
}

void display_reset(void) {
  _delay_ms(50);
  DISPLAY_CTRL.OUTCLR = _BV(DISPLAY_CTRL_RST);
  _delay_ms(1);
  DISPLAY_CTRL.OUTSET = _BV(DISPLAY_CTRL_RST);
  _delay_ms(50);
}

void display_cmd(uint8_t cmd) {
  DISPLAY_CTRL.OUTCLR = _BV(DISPLAY_CTRL_DC) | _BV(DISPLAY_CTRL_WR);
  DISPLAY_DATA.OUT    = cmd;
  DISPLAY_CTRL.OUTSET = _BV(DISPLAY_CTRL_WR);
  DISPLAY_CTRL.OUTSET = _BV(DISPLAY_CTRL_DC);
}

void display_data(uint8_t data) {
  DISPLAY_CTRL.OUTCLR = _BV(DISPLAY_CTRL_WR);
  DISPLAY_DATA.OUT    = data;
  DISPLAY_CTRL.OUTSET = _BV(DISPLAY_CTRL_WR);
}

void display_region(uint8_t x, uint8_t y, uint8_t xlen, uint8_t ylen) {
  display_cmd(DISPLAY_SET_COLUMN);
  display_data(x); display_data(x + xlen - 1);
  display_cmd(DISPLAY_SET_ROW);
  display_data(y); display_data(y + ylen - 1);
  display_cmd(DISPLAY_WRITE);
}

void display_clear(void) {
  uint8_t x, y;
  display_region(0, 0, DISPLAY_WIDTH, DISPLAY_HEIGHT);
  for (y = 0; y < DISPLAY_HEIGHT; y++) {
    for (x = 0; x < DISPLAY_WIDTH; x++) {
      display_data(0x00); display_data(0x00);
    }
  }
}

void display_setup(void) {
  DISPLAY_CTRL.DIR = _BV(DISPLAY_CTRL_DC) | _BV(DISPLAY_CTRL_RST) | _BV(DISPLAY_CTRL_WR);
  DISPLAY_DATA.DIR = 0xFF;
  DISPLAY_DATA.OUT = 0x00;
}

void display_brightness(uint8_t level) {
  if (level > 0x0F) level = 0x0F;
  display_cmd(DISPLAY_CONTRAST);
  display_data(level);
}

void display_init(void) {
  display_setup();
  display_reset();
  display_cmd(DISPLAY_OFF);
  display_cmd(DISPLAY_RESET);
  display_reset();
  display_cmd(0xA8); display_data(0x7F); // MUX ratio.
  display_cmd(0xA2); display_data(0x00); // Set display offset.
  display_cmd(0xA1); display_data(0x00); // Set display start line.
  display_cmd(0xA4);                     // Set display in Normal mode.
  display_cmd(0xA0); display_data(0x74); // Set Re-map, color depth.
  display_cmd(0x81); display_data(0x75); // Set Contrast for color"A" segment. Red contrast set for VCC:17V.
  display_cmd(0x82); display_data(0x60); // Set Contrast for color"B" segment. Green contrast set for VCC:17V.
  display_cmd(0x83); display_data(0x6A); // Set Contrast for color"C" segment. // Blue contrast set for VCC:17V.
  display_cmd(0x87); display_data(0x0F); // Master Contrast Current Control. Reset value for VCC:17V.
  display_cmd(0xB9);                     // Use linear grayscale table.
  display_cmd(0xB1); display_data(0x22); // Set Phase1 and phase2 period adjustment.
  display_cmd(0xB3); display_data(0x40); // Set Display Clock Divide Ratio (internal clock selection).
  display_cmd(0xBB); display_data(0x08); // Set Pre-charge Voltage.
  display_cmd(0xBE); display_data(0x2F); // Set VCOMH.
  display_clear();
  display_cmd(DISPLAY_ON);
}

void display_pixel(uint8_t x, uint8_t y, uint16_t color) {
  display_region(x, y, x, y);
  display_cmd(DISPLAY_WRITE);
  display_data(color >> 8);
  display_data(color & 0xFF);
}

void ui_line(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, uint16_t color) {
  int dx = abs(x1 - x0), sx = x0 < x1 ? 1 : -1;
  int dy = -abs(y1 - y0), sy = y0 < y1 ? 1 : -1;
  int err = dx + dy, e2;

  while (1) {
    display_pixel(x0, y0, color);
    if (x0 == x1 && y0 == y1) break;
    e2 = 2 * err;
    if (e2 >= dy) { err += dy; x0 += sx; }
    if (e2 <= dx) { err += dx; y0 += sy; }
  }
}

void ui_char(uint8_t x0, uint8_t y0, uint16_t color, uint8_t scale, char c) {
  if (c < 0x20 || c > 0x7E) return;
  const uint8_t* glyph = FONT[c - 0x20];

  for (uint8_t i = 0; i < 5; i++) {
    uint8_t line = pgm_read_byte(&glyph[i]);
    for (uint8_t j = 0; j < 7; j++) {
      uint16_t pixelColor = (line & (1 << j)) ? color : COLOR_BK;
      for (uint8_t dy = 0; dy < scale; dy++) {
        for (uint8_t dx = 0; dx < scale; dx++) {
          display_pixel(x0 + i * scale + dx, y0 + j * scale + dy, pixelColor);
        }
      }
    }
  }
}

void ui_text(uint8_t x0, uint8_t y0, uint16_t color, uint8_t scale, const char* str) {
  while (*str) {
    ui_char(x0, y0, color, scale, *str);
    x0 += (5 + 1) * scale;
    str++;
  }
}

int main(void) {
  clk_init();
  display_init();
  display_brightness(8);

  while (1) {
      display_clear();
      ui_text(0, 55, COLOR_OR, 2, "Hello screen");
      _delay_ms(1000);
  }

  return 0;
}

Para compilarlo deberá ejecutar el siguiente comando:

1
2
3
4

avr-gcc -mmcu=avr128da28 \
	-DF_CPU=24000000UL \
	-g -Os -std=gnu99 -Wall -o main.elf *.c
avr-objcopy -O ihex  main.elf main.hex

Para subir el programa al microcontrolador, deberá ejecutar el siguiente comando:

1

avrdude -c serialupdi -p avr128da28 -P /dev/tty.usbserial-2110 -e -F

Si todo fue bien, podrá disfrutar del dosplay.
